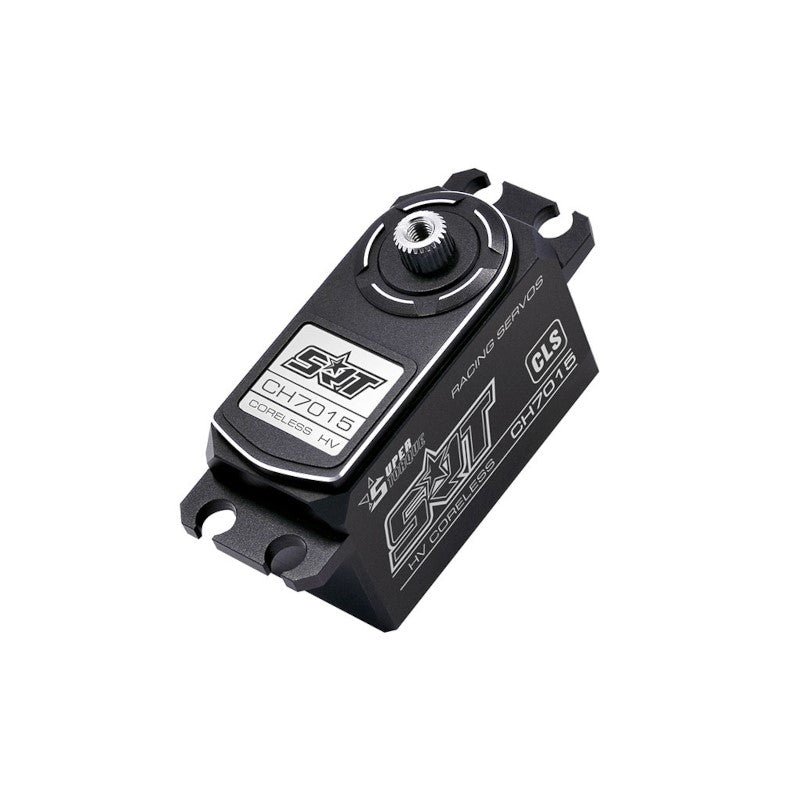

3832 SRTCH7015 Servo CH7015 Low Profile Coreless HV 13.0kg/0.08sec @7.4V

3832 SRTCH7015 Servo CH7015 Low Profile Coreless HV 13.0kg/0.08sec @7.4V

€79,71 EUR
€79,71 EUR
Sale Sold out
Taxes included.

& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH7015 0.10 12.0/166.6 0.08 13.0/180.5 0.07 15.0/208.3 Titanium & Alu Coreless  all-metal 41.0*20.0*26.4 52.0
