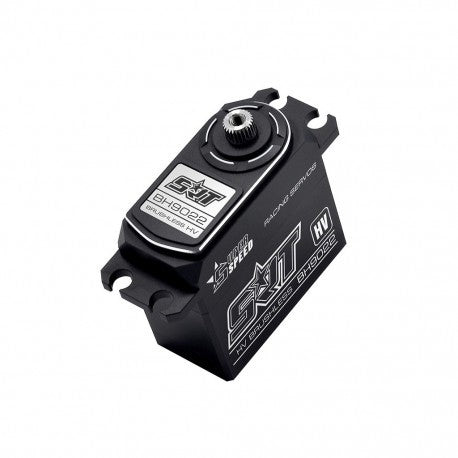

3833 SRTBH9022 Servo BH9022 Brushless HV - High Speed 20.0kg/0.065sec @7.4V

3833 SRTBH9022 Servo BH9022 Brushless HV - High Speed 20.0kg/0.065sec @7.4V

€99,17 EUR
€99,17 EUR
Sale Sold out
Taxes included.

& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH9022 0.085 18.0/249.9 0.065 20.0/277.7 0.06 22.0/305.5 Titanium & Steel Brushless  all-metal 40.0*20.0*38.0 79.0
