ATC

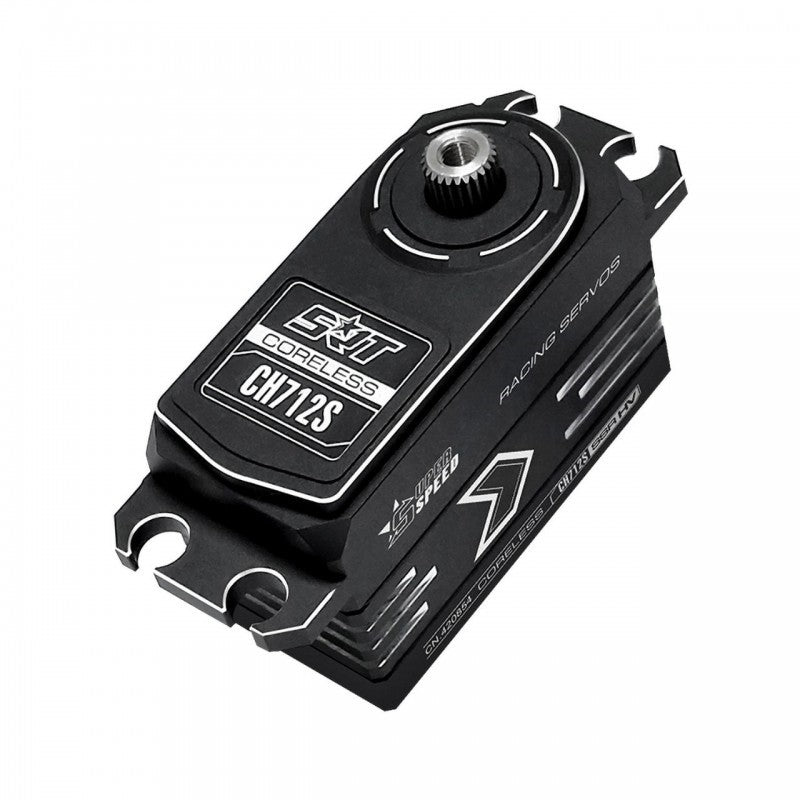

3838 SRTCH712S Servo CH712S HV Low Profile Coreless Alum. case 11.8kg/0.052sec @7,4V

3838 SRTCH712S Servo CH712S HV Low Profile Coreless Alum. case 11.8kg/0.052sec @7,4V

€83,35 EUR
€83,35 EUR
Sale Sold out
Taxes included.

& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& SSR mode compatible
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH712S 0.065 9.8/136.1 0.052 11.8/163.9 0.049 12.6/175.0 Titanium & Alu Coreless  all-metal 41.0*20.0*26.4 52.0
